Artillery RoundsRAPIT-C,API,API-T,AP-T
23×115 mm Rounds API with Armour-Piercing Incendiary Projectile
23×115 mm Rounds API-TM with Armour-Piercing Incendiary Tracer Projectile
23×115 mm API
23×115 mm API-TM
23×152 mm Round RAPIT-C Armour-Piercing Incendiary Tracer Projectile with
tungsten alloy core
23×152 mm Round API with Armour Piercing Incendiary Projectile
23×152 mm Round API-T with Armour Piercing Incendiary Tracer Projectile
23×152 mm Round AP-T with Armour Piercing Tracer Projectile
The Rounds are compatible with 23 mm ADS, ADS-N, ZU-23-2, ZU-23-2F and ZSU-23-4
and intended to defeat air targets, ground unarmored and light armored vehicles .

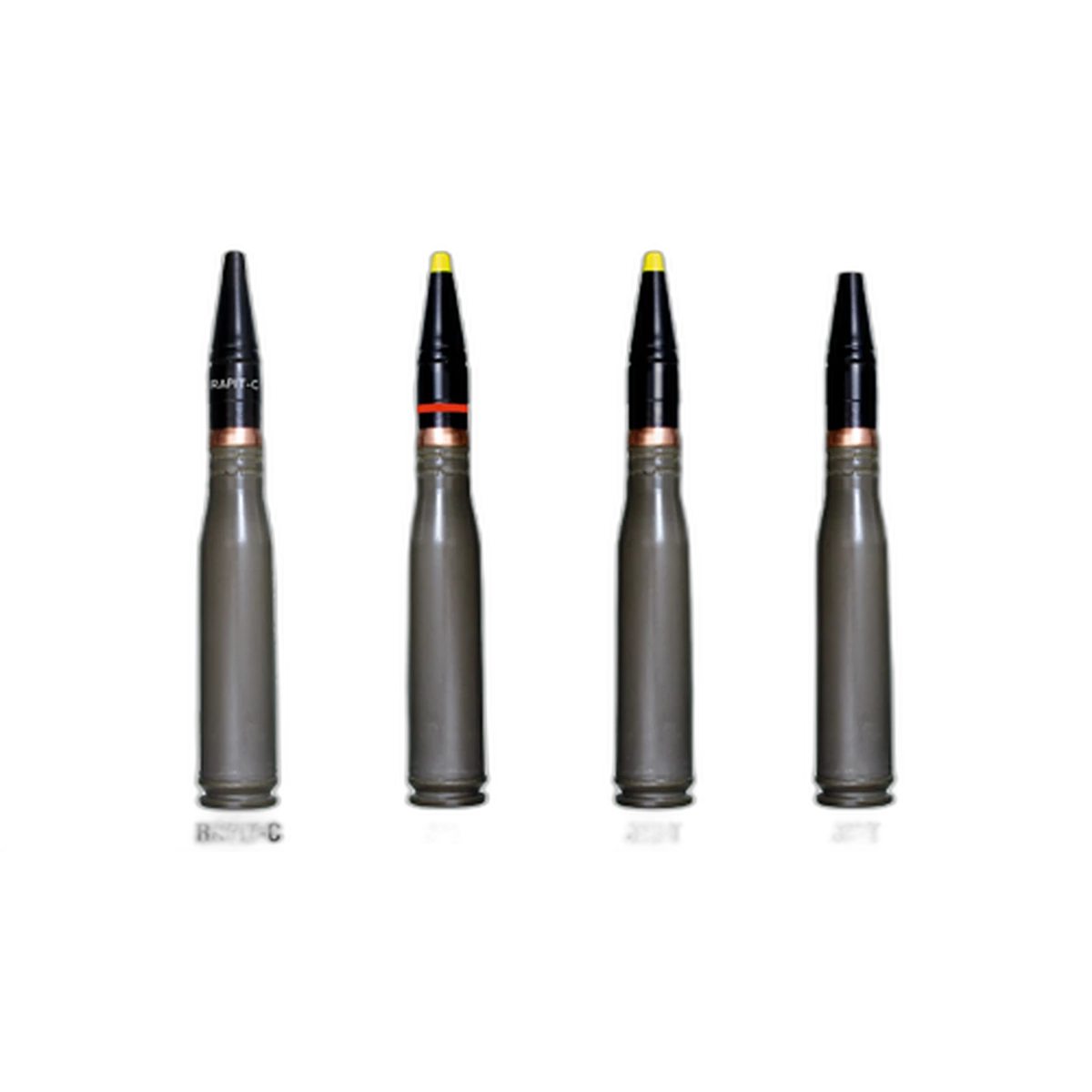

RAPIT-C API API-T AP-T
Caliber, mm 23×152 mm
Projectile type Armour Piercing Incendiary with Tracer Armour Piercing Incendiary2 Armour Piercing Armour Piercing Tracer Incendiary with Tracerr
Round length, mm from 234.36 to 237.16 from 234.36 to 237.16 from 234.36 to 237.16 from 234.36 to 237.16
Round weight, g 450 approx. 450 approx. 450 approx. 450 approx.
Projectile weight, g 193 approx. 185.6 approx. 185.6 approx. 185.6 approx.
Primer Percussion Primer No3 Percussion Primer No3 Percussion Primer No3 Percussion Primer No3
Tracer burning time, s not less than 3 – not less than 5 not less than 5
Average muzzle
velocity, V0aver , m/s 970 970 970 970
Average max Pressure
at 15°C PmaxaverMpa not more than 286.84 not more than 286.84 not more than 286.84 not more than 286.84
Penetration*, distance, mm at 700 m: 30 mm at 700 m: 15 mm at 700 m: 15 mm at 700 m: 15 mm
at 1 000 m: 25 mm at 1 000 m: 10 mm at 1 000 m: 10 mm at 1 000 m: 10 mm
Propellant type 5/7 Cfl 5/7 Cfl 5/7 Cfl 5/7 Cfl
Case material steel steel steel steel
Operational
temperature range, °C from minus 50 to 50 from minus 50 to 50 from minus 50 to 50 from minus 50 to 50
CLASS OF EXPLOSION HAZARD 1.2C, UN 0328 1.2C, UN 0328 1.2C, UN 0328 1.2C, UN 0328
* Penetration test is proved by firing on 15 mm armour plate,
placed at 100 m from the muzzle, at 600 towards
the firing line and projectile impact velocity Vimpact=680± 20 m/s.
28 Rounds in one airtight metal box, three metal boxes ( 84 pcs. totally ) in a wooden case
RAPIT-C API API-T AP-T
Wooden case dimensions, mm 875x398x206 875x398x206 875x398x206 875x398x206
Gross weight, kg 55 55 55 55
Volume, m3 0.072
