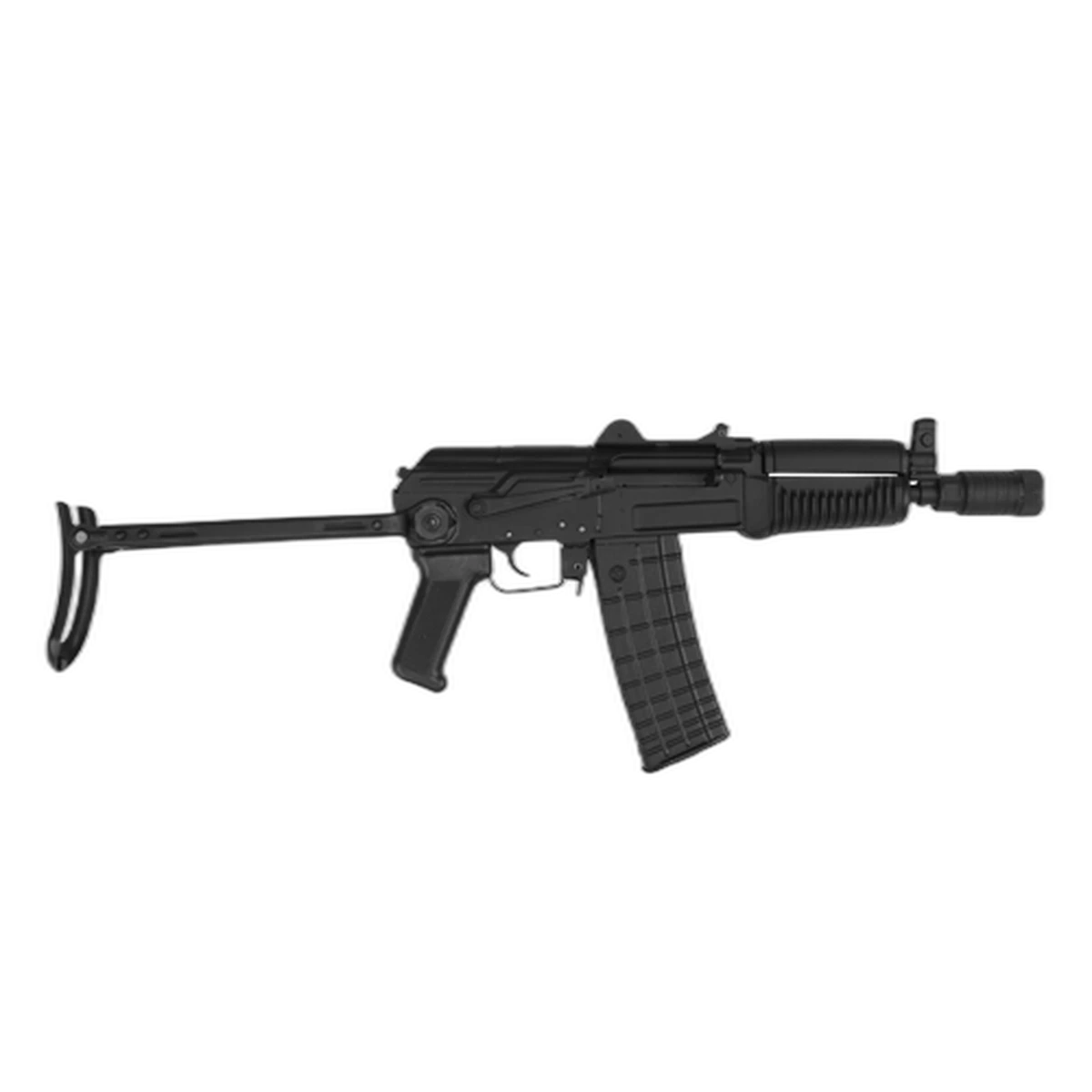

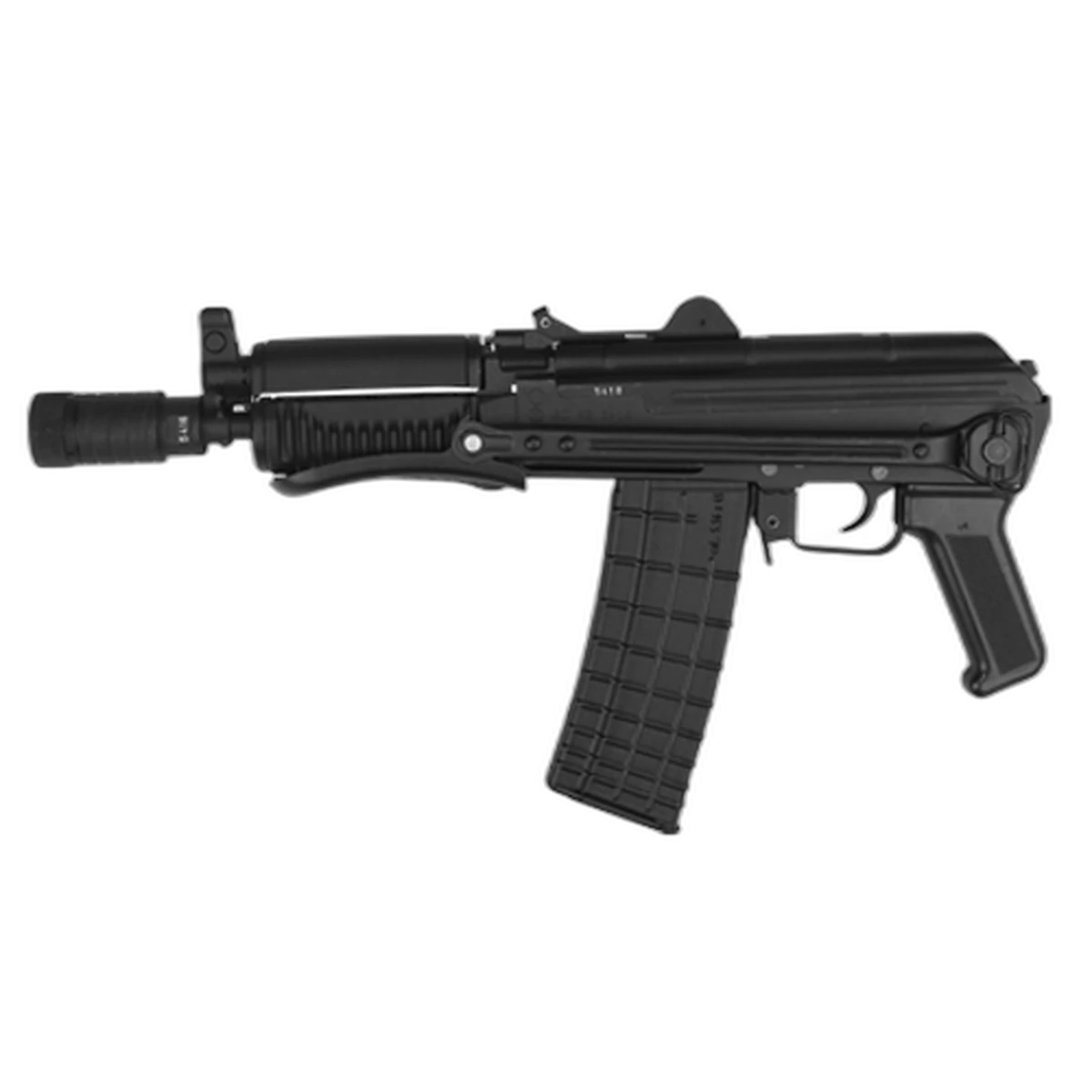

Assault Rifle AR-SF
The 5.56 mm AR-SF and 7.62 mm AR-SF are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.
Calibre, mm 5.56 7.62
Cartridge, mm 5.56 x 45 7.62 x 39
Fire mode single, automatic single, automatic
Rate of fire, rounds/min 600 600
Practical rate, rounds/min
– automatic fire up to 100 up to 100
– single fire up to 40 up to 40
Muzzle velocity, m/s 600
– bullet type M 193 790 –
– bullet type SS 109 730 –
Sighting range, m 500 500
Maximum firing range, m 1100 1100
Effective firing range, m 300 250
Magazine capacity, rounds 30 30
Barrel length, mm 215 215
Sight radius, mm 240 235
Overall length, mm
– with extended butt 750 750
– with folded butt in travelling position 500 500
Weight, kg:
– rifle without magazine 3.1 3.1
– loaded magazine 0.58 0.72
System life, rounds 15 000 15 000
Principle of function gas operated gas operated
Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Metal down-folding butt.
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Bag for magazines
Oil can
Magazine 4 pcs
5.56×45 mm
7.62×39 mm
Number of rifles in one wooden case 10
Case dimensions, mm 1211x572x356
Gross Weight of the wooden case, kg 80
Volume of the wooden case, m3 0.25
5.56x45mm and 7.62x39mm
