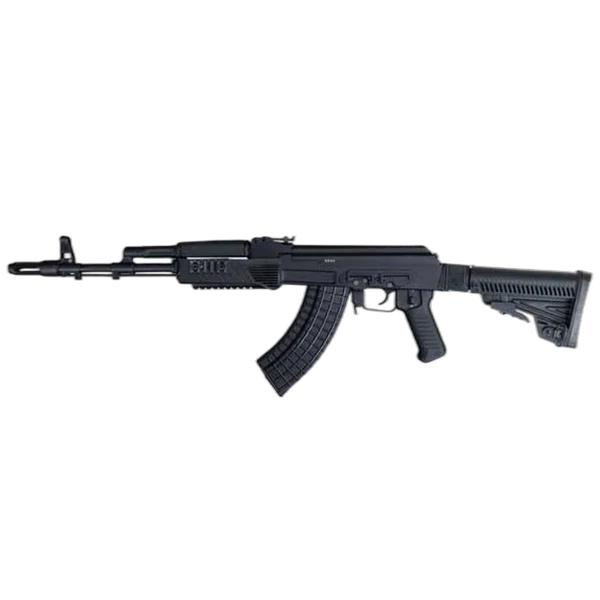

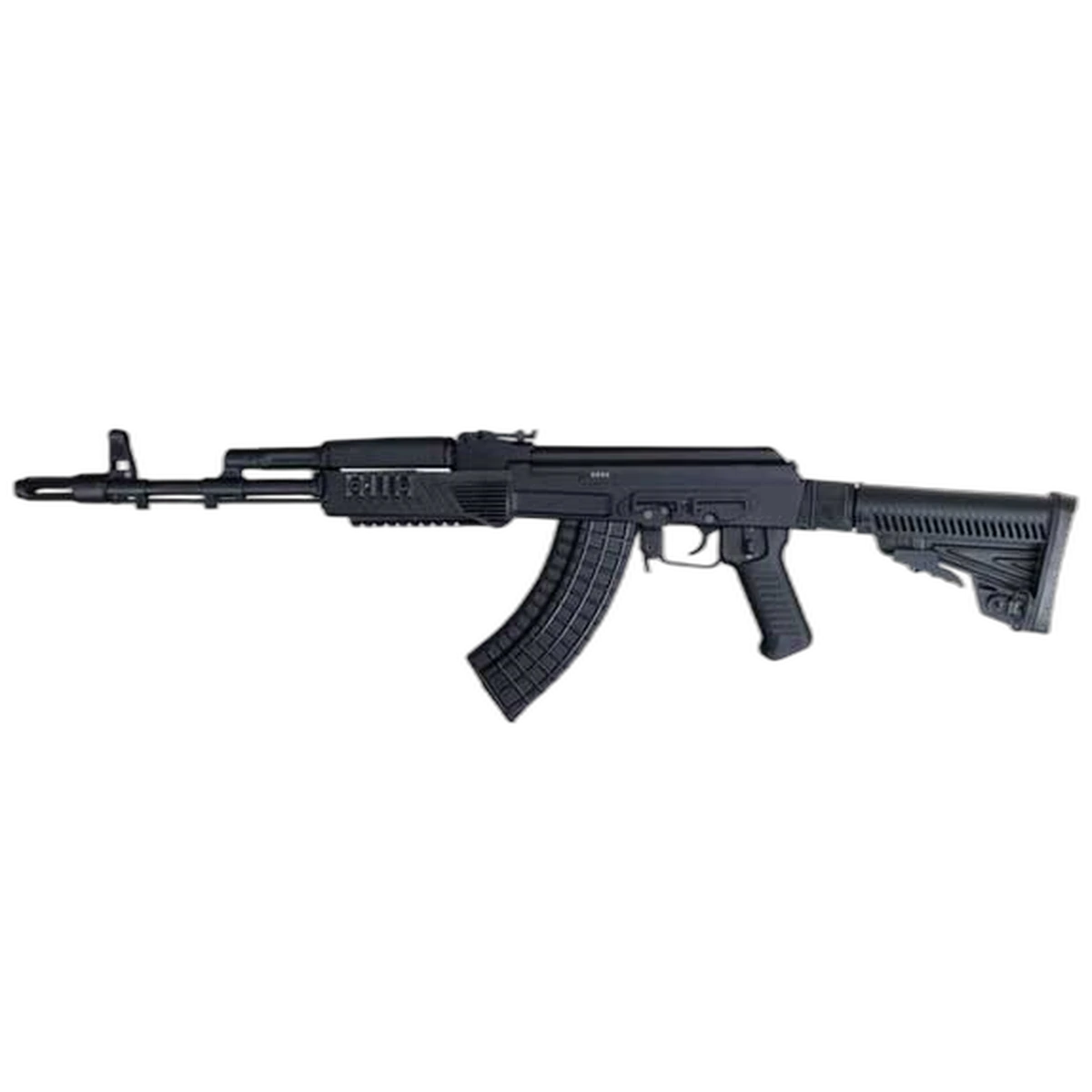

Assault Rifles AR-M7T

Calibre, mm 5.56 7.62
Cartridge, mm 5.56×45 7.62×39
Fire mode single and automatic single and automatic
Rate of fire, rounds/min 600 600
Practical rate, rounds/min
– automatic fire up to 100 up to 100
– single fire up to 40 up to 40
Muzzle velocity, m/s 710÷715
– bullet type M 193 910 –
– bullet type SS 109 870 –
Sighting range, m up to 800 up to 800
Maximum firing range, m 1350 1350
Effective firing range, m 500 400
Magazine capacity, rounds 30 30
Barrel length, mm 415 415
Sight radius, mm 370 370
Overall length, mm
-with extended butt 1045 1045
-with folded butt in traveling position 945 945
Weight, kg: 4.0 4.0
rifle without magazine 0.58 0.72
– loaded magazine
System life, rounds 15 000 15 000
Principle of function gas operated gas operated

Gas operated automatic rifle;
Fire mode – single and automatic;
Hot-die forged and milled receiver for increased durability and service life;
Chromium plated Barrel bore and chamber;
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 30-round Magazine – heat/cold
resistant with antiglare matte finish;
Possibility of several stages of telescopic butt extension;
MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o’clock positions);
Side mounted scope rail for dovetail based sight carriers with sighting devices;
Ambidextrous Safety Lever for rapid fire mode switchover;
Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade
Launchers, and firing with them.

Cleaning rod

Sling

Box with accessories(brush, drift, slush brush, screwdriver)

Cleaning rod extension

Magazine – 4 pcs.

5.56×45 mm

7.62×39 mm

Bag for magazines

Oil can

Number of rifles in one wooden case 10
Case dimensions, mm 1380x572x387
Gross Weight of the wooden case, kg 92
Volume of the wooden case, m3 0.3

5.56x45mm and 7.62x39mm
