Rounds for Light Anti-tank Recoilless Systems40/90 mm RHEAT-7MA6

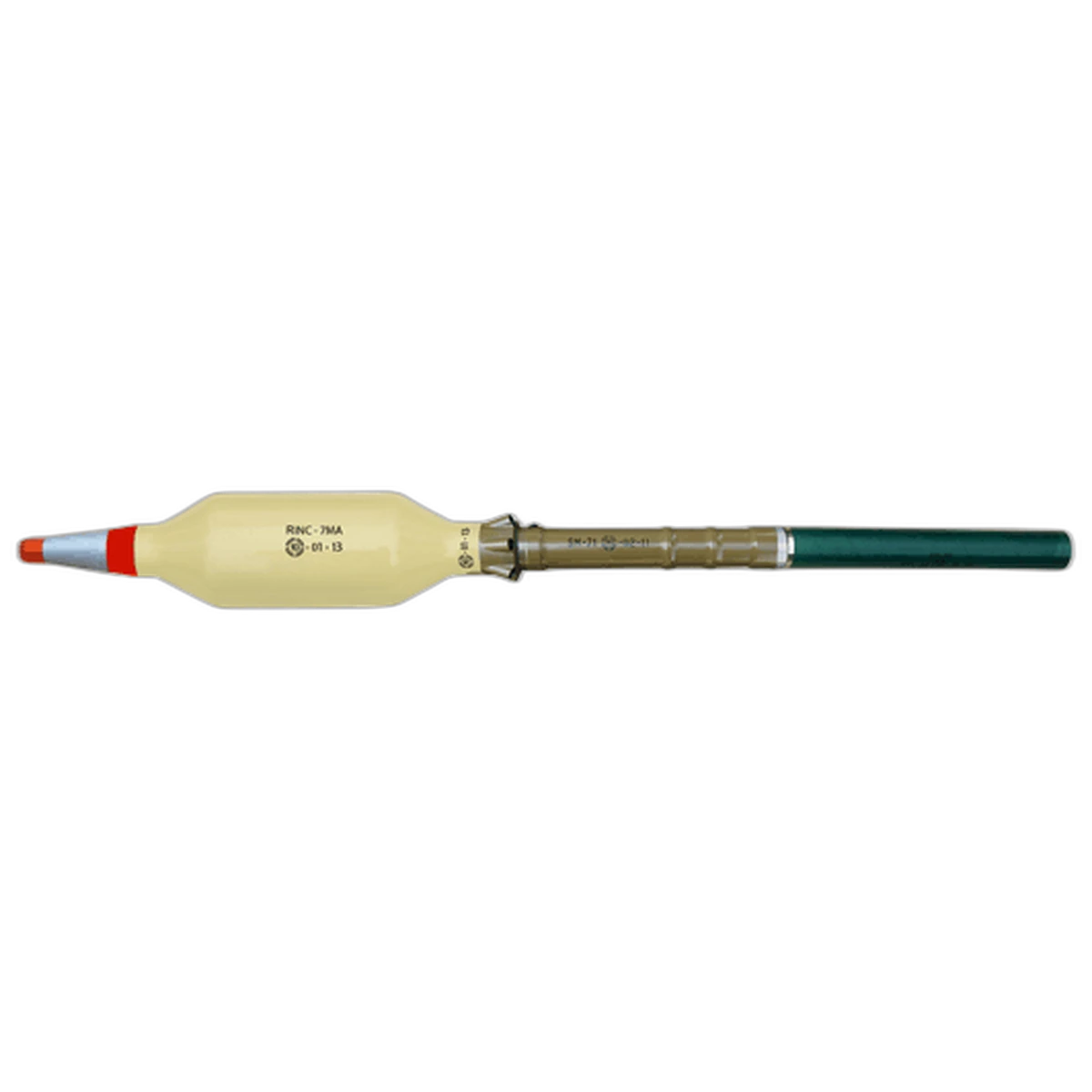

40/90 mm Round RHEAT-7MA6 with Anti-Tank Grenade GHEAT-7MA6
Improved, modernized version of Anti-Tank Rounds for RPG-7V
The 40/90 mm Round RHEAT-7MA6 with Anti-tank Grenade GHEAT-7MA6 is designed for destroying tanks, armoured and non-armoured vehicles. It can also be used against enemy troops and weapon emplacements in trenches, field shelters, reinforced buildings, blindages and stone-, brick- or concrete-wall fortifications.
Performance :
Higher accuracy and low dispersion;
Max sighting range – 300 m.
Caliber, mm 40
Warhead caliber, mm 90
Armour penetration, mm, not less than 500
Max sighting range, m 300
Max firing distance, m, not less than 500
Direct-fire range at 2m high target, m 250
Weight of the round, kg 2.800 max
Weight of the grenade, kg 2.400
Average muzzle velocity, m/s 106±3
Fire rate, shots/min 4÷6
Operational temperature range, oC from minus 40 to 50
Fuze type Piezoelectric AF79
Fuze azming distance, m from 6 to 20
6 Rounds are packed in a wooden case as follows:
6 Grenades GHEAT-7MA6 (each one packed in airtight plastic bag) are arranged in two layers in the wooden case, and
6 Propellant Charges CP-78 (each one packed in a plastic container, every 3 pcs. of plastic containers are packed in an airtight plastic bag).
Wooden case:
Dimensions, mm 895x481x325
Weight, kg 42
Volume, m3 0.14
CLASS OF EXPLOSION HAZARD: 1.1E, UN 0181
