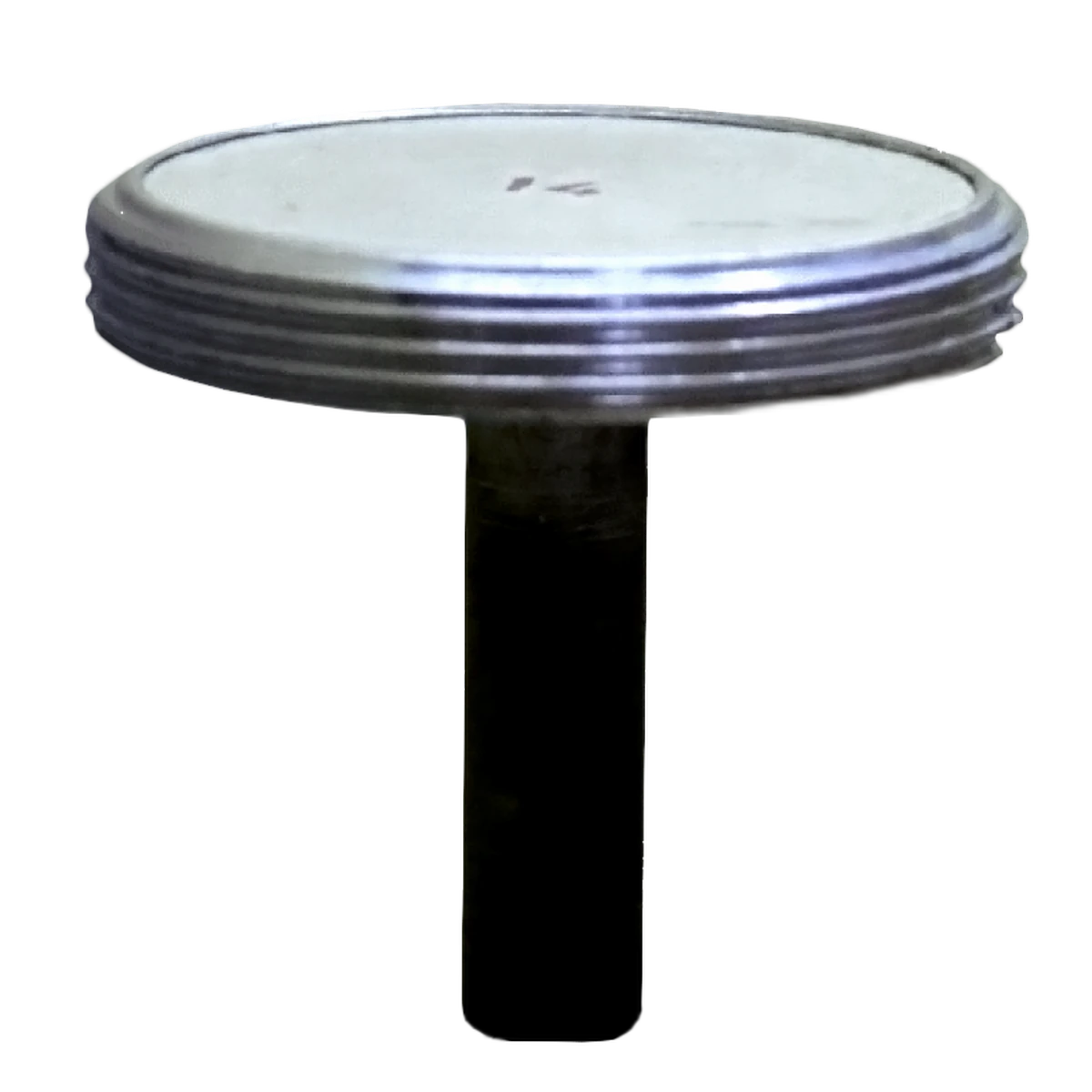

VPZ-9M PYRODELAY ELEMENT
Weight of pyrodelay element, g: 35
Body diameter, mm: Ø 8,8
Height, mm: 44,6
Fixing thread: M45x1,5
Delay element burn time, s: 0,023…0,050
Safe operational temperature range, °C: -40…50
Weight of pyrodelay element, g: 35
Body diameter, mm: Ø 8,8
Height, mm: 44,6
Fixing thread: M45x1,5
Delay element burn time, s: 0,023…0,050
Safe operational temperature range, °C: -40…50
The VPZ-9M pyrodelay element is designed for transmitting a pulse for initiating the grenade’s rocket motor at a safe distance from the SPG-9M heavy grenade launcher`s muzzle end face.
