Artillery RoundsTP

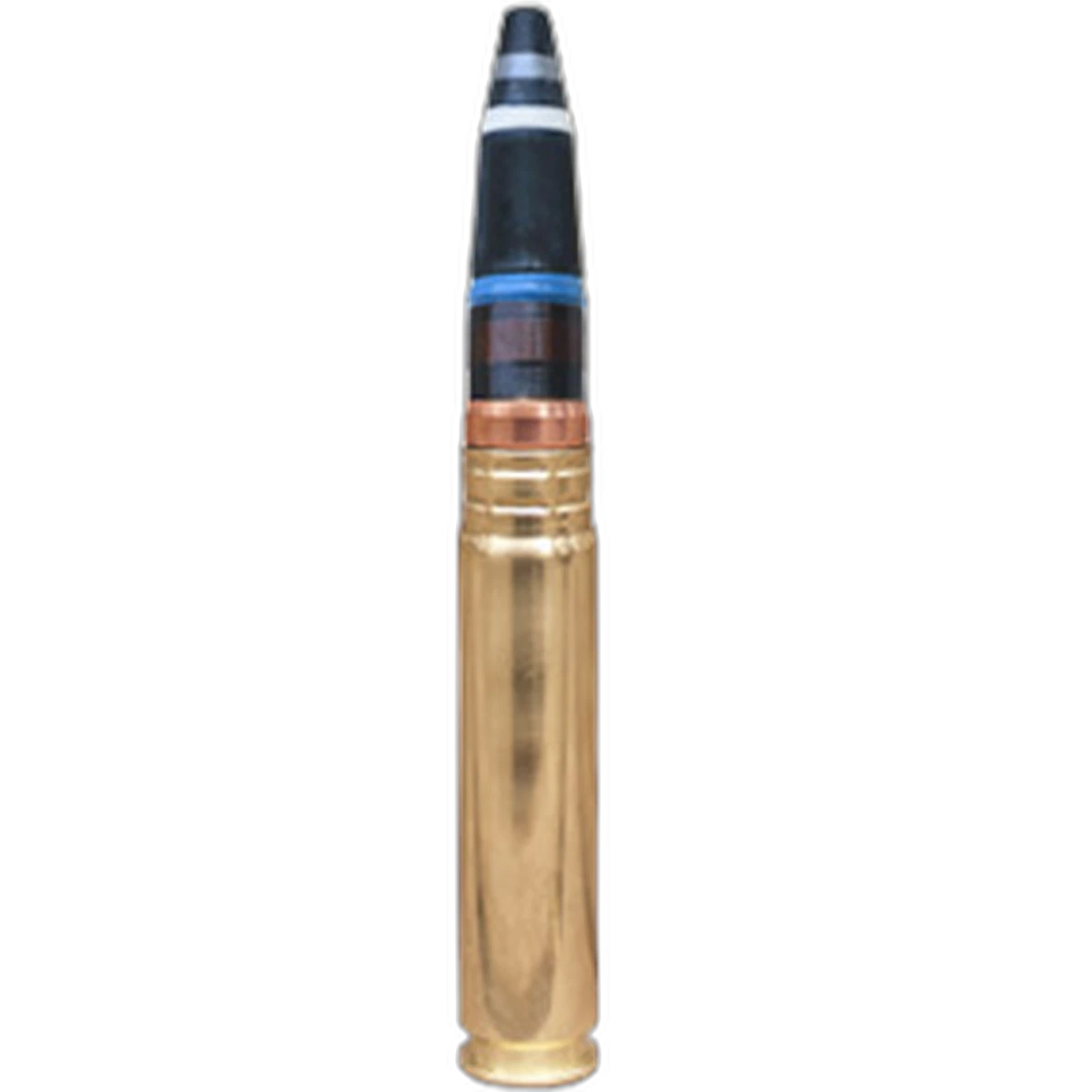

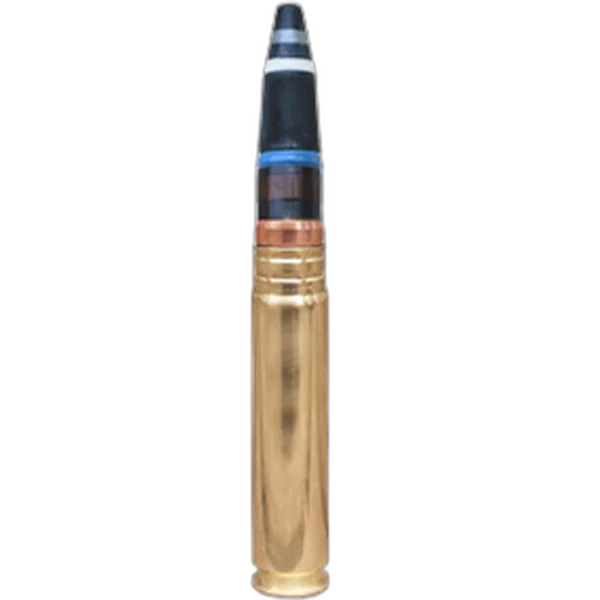

23×115 mm Rounds TP with Target Practice Projectile
The Rounds are compatible with 23 mm GSh-23, GSh-23L, GSh-6-23M and AM-23 Automatic guns installed on Su-24, MiG-31, Su-15, MiG-21, MiG-23, Tu-22M, Tu-95s
and llyushin II-76 aircraft and Mi-24VP, W-3WA helicopters, and others;
intended for training purposes.
Caliber,mm 23×115
Weapon systems 23 mm GSh-23L, AM-23 and
GSh-6-23M Aircraft guns
Round length, mm from 197.86 to 200.66
Round weight, g 326 approx.
Projectile weight, g 169 approx.
Average muzzlevelocity, Voaver, m/s 715
Average max Pressureat 15°C Pmaxaver, Mpa 294.2
Propellant type 4/7 Cgr
Case material brass
Class of Hazard, UN number 1.2C, UN 0328
Operational temperature range, °C from minus 50 to 50
44 rounds in one airtight metal box, three metal boxes
(132 pcs totally) in a wooden case
Wooden case dimensions, mm 875x398x206
Gross weight, kg 61
Volume, m3 0.072
