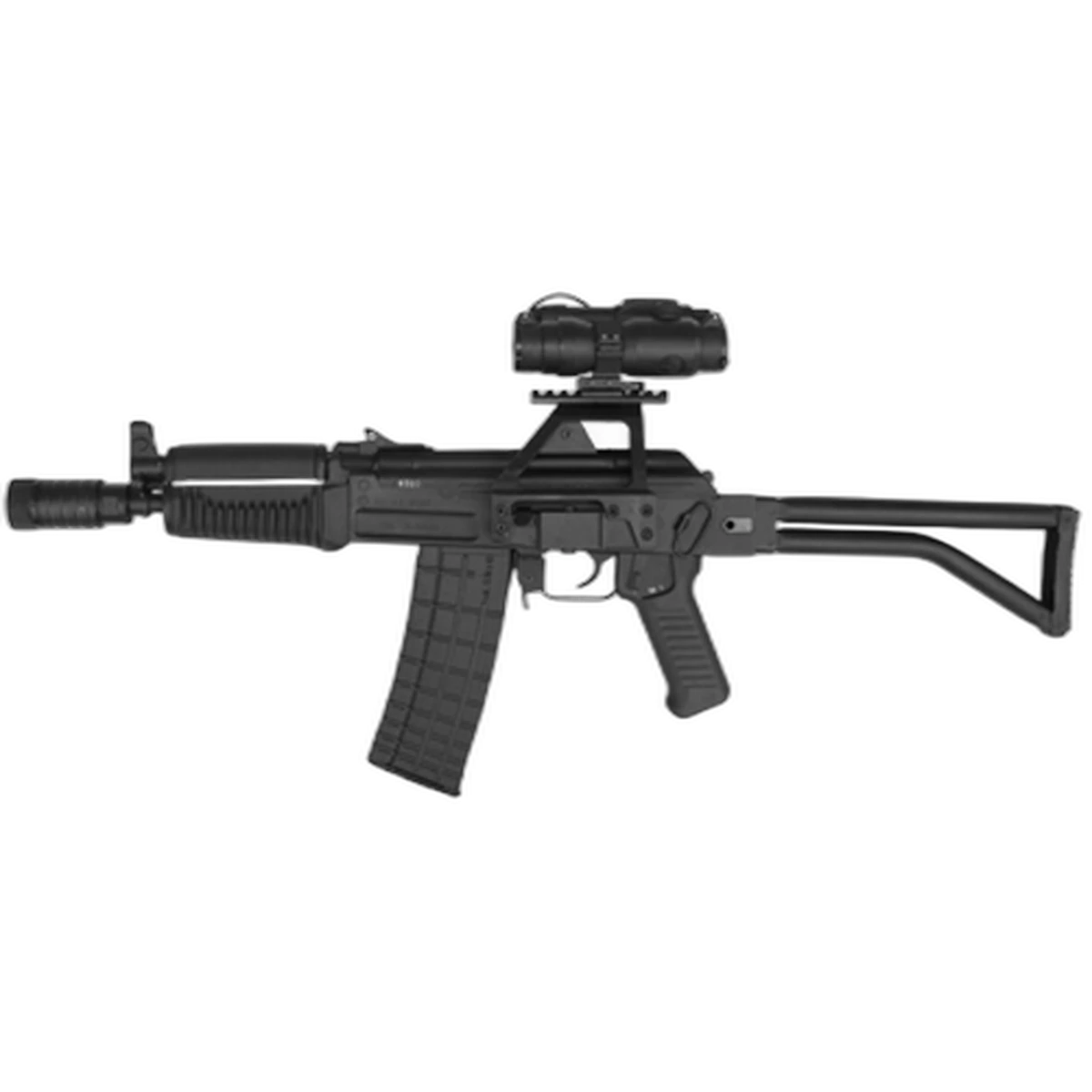

Assault Rifles AR-M14SF
The 5.56 mm AR-M14SF and 7.62 mm AR-M14SF are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.
Calibre, mm 5.56 7.62
Cartridge, mm 5.56 x 45 7.62 x 39
Fire mode single, automatic
Rate of fire, rounds/min 600 600
Practical rate, rounds/min
– automatic fire up to 100 up to 100
– single fire up to 40 up to 40
Muzzle velocity, m/s – 600
– bullet type M 193 750 –
– bullet type SS 109 710 –
Sighting range, m 500 500
Maximum firing range, m 1100 1100
Effective firing range, m 300 250
Magazine capacity, rounds 30 30
Barrel length, mm 215 215
Sight radius, mm 300 300
Overall length, mm – with extended butt with extended butt 760 760
– with folded butt in traveling position 520 520
Weight, kg:
– without magazine 3.3 3.3
– loaded magazine 0.58 0.72
System life, rounds 15 000 15 000
Principle of function gas operated gas operated
Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Upper hand guard, equipped with one Picatinny rail (at the 12 o’clock position);
Tritium Self-illuminated Night Sight (3-dot sight system) – extra, used for quick target acquisition at low-light conditions;
Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached;
Telescopic plastic butt with several stages of extraction;
Additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters.
Cleaning rod
Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine 4 pcs
5.56×45 mm
7.62×39 mm
Bag for magazines
Oil can
Sight carrier with rail MIL-STD 1913 (Picatinny)
Wide Range Electronic Optical
Red Dot Sight MK-6
Number of rifles in one wooden case 10
Case dimensions, mm 1211x572x356
Gross Weight of the wooden case, kg 84
Volume of the wooden case, m3 0.25
5.56x45mm and 7.62x39mm
