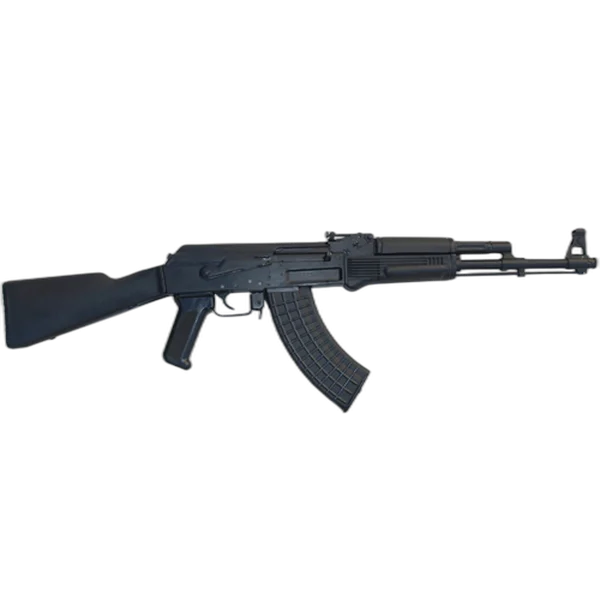

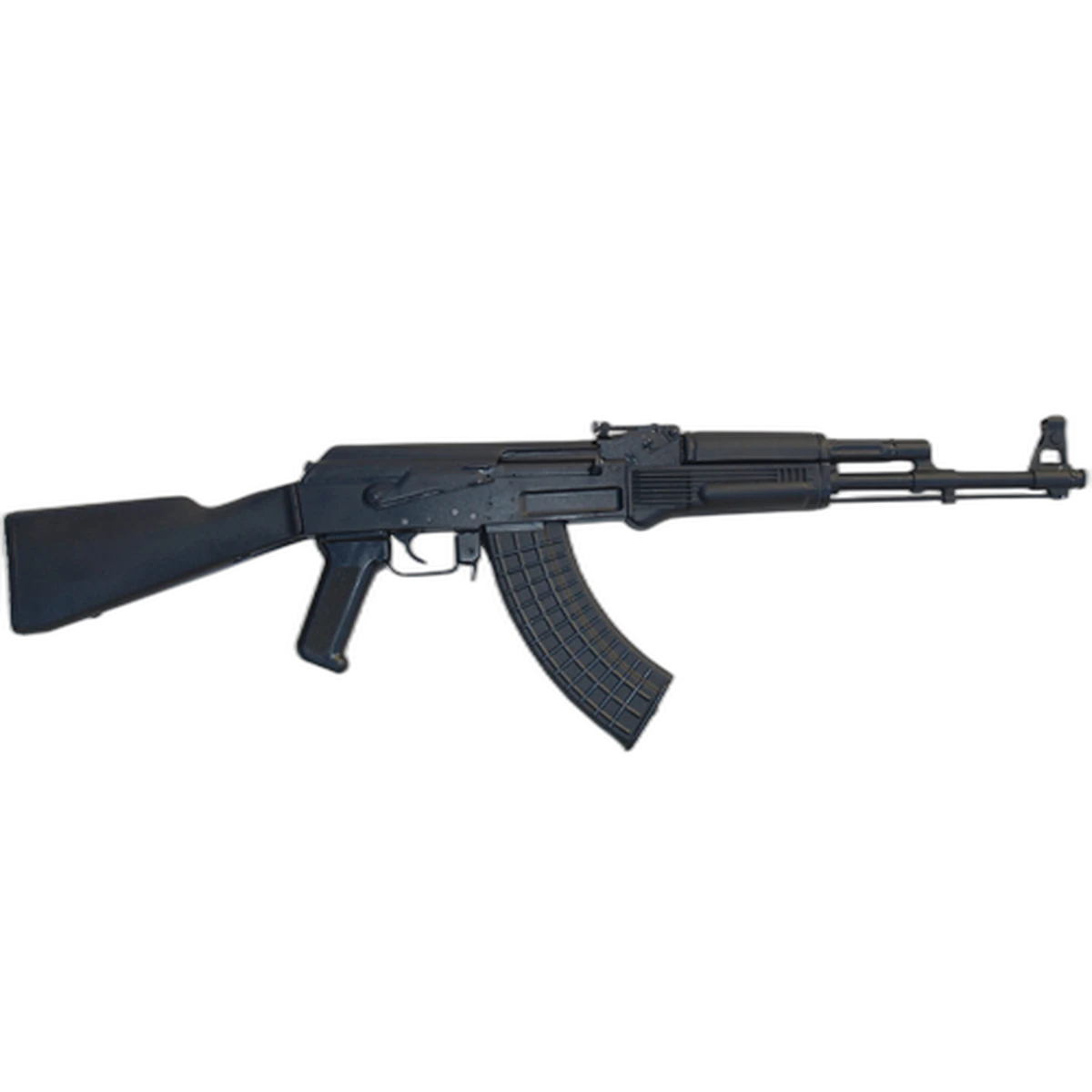

Assault Rifle AR-M1
The 7.62 mm AR-M1 is a highly effective automatic weapon, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.
Calibre, mm 7.62
Cartridge, mm 7.62 x 39
Fire mode Single and automatic
Rate of fire, rounds/min 600
Practical rate, rounds/min
– automatic fire up to 100
– single fire up to 40
Muzzle velocity, m/s 710
Sighting range, m 800
Maximum firing range, m 1350
Effective firing range, m 400
Magazine capacity, rounds 30
Barrel length, mm 415
Sight radius, mm 378
Overall length, mm 875
– with metal extended butt
– with folded butt in travelling position
Weight, kg:
Weight without magazine, kg 3.5
Weight of loaded magazine, kg 0.72
System life, rounds 15 000
Principle of function Gas operated automatic rifle
The 7.62 mm AR-M1 belongs to the firearms whose action is based on the principle of conveying a part of the powder gases through a special port in the wall of the stationary barrel and their influence onto the bolt carrier.
The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.
The receiver is made from hot die forged solid blank followed by milling operations.
The barrel and chamber are chromium plated.
The weapon is fed from a 30-round arcuated staggered magazine, manufactured from glass fiber reinforced polycaproamide.
The handguards, the butt and the pistol grip are made from fiber glass reinforced polycaproamide.
The sigh consists of sectors marked for shooting at a distance of up to 800 m.
The hammer-trigger mechanism has a hammer, which is activated by firing spring. This mechanism has a safety device-safety for setting from single to automatic fire mode as well as contrariwise. The safety simultaneously serves as well as a safety level preventing the accidental shoots. It is located on the right hand side of the receiver and is formed as a long pivoted lever. When set in the utmost upper position the trigger is blocked. In this position the safety serves two other functions:
– prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
– prevents from reloading the barrel chamber.
The Assault Rifle design allows the attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL or GP-25, GP-30 Underbarrel Grenade Launchers, and firing with them.
Cleaning rod
Sling
Box with accessories (brush, drift, scourer, screwdriver)
Magazine – 4 pcs.
Bag for magazines
Oil can
Wooden case dimensions, mm 1380x530x387
Wooden case Gross weight, kg 84
Wooden case volume, m3 0.28
7.62×39 mm
