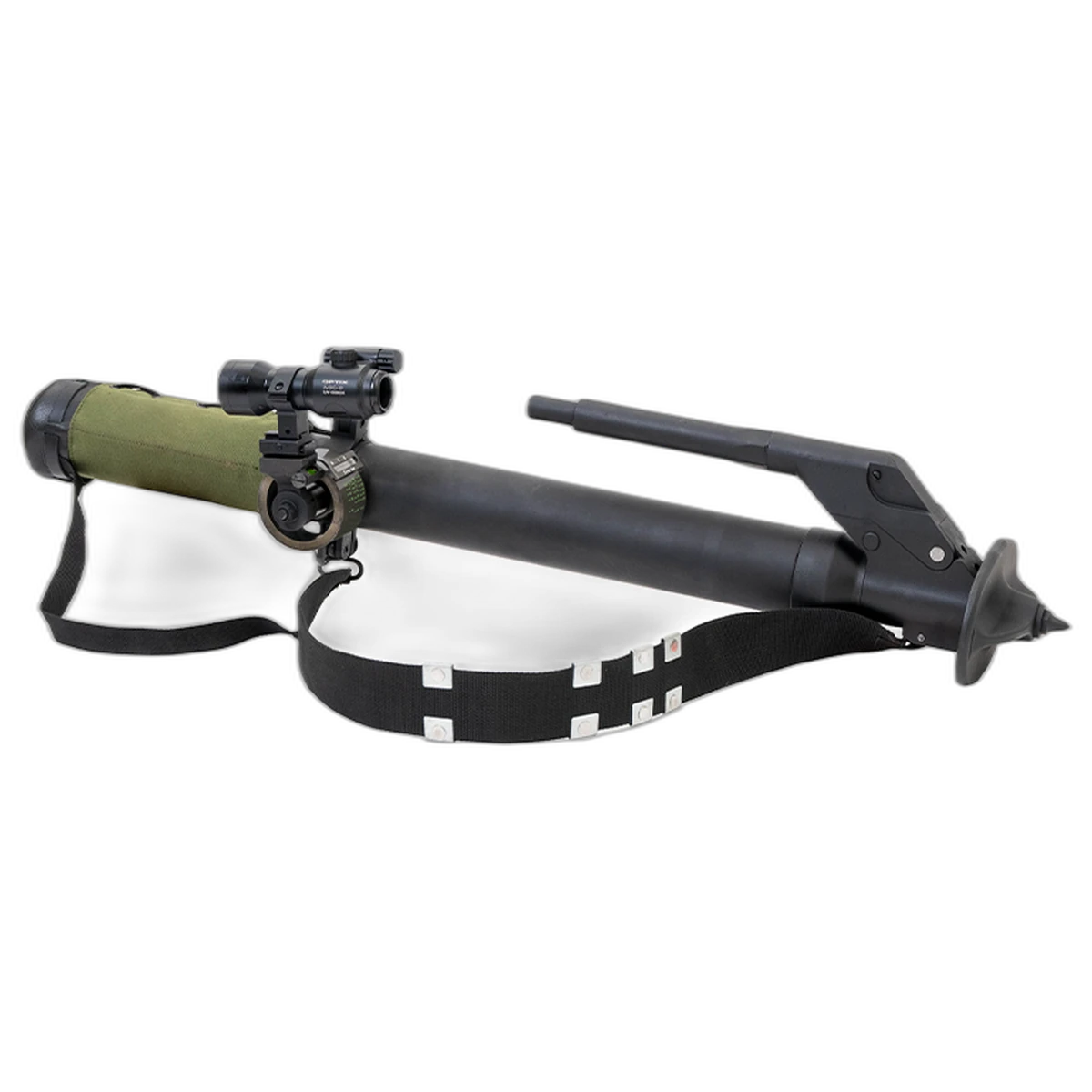

60 mm COMANDO Mortar M60CMA (with Collimator Sight)
The 60 mm Commando Mortar M60CMA is a portable and with light weight weapon, designed for paratroops and special forces.
Calibre, mm 60
Weight, kg 5.7
Overall length, m 815
Rate of fire, rounds/min. 30
Max average gas pressure, bar 250
Highest max gas pressure, bar 290
Max range of fire (with HE 60MA), m 1631
Max range of fire (with HE 60C, HEI 60C, PRACT 60C), m
2347
Max range of fire (with TB 60C, SMK 60CRP), m 2253
Ammunition 60 mm HE 60C, HEI 60C, TB 60C, AD 60C, ILL 60C, PRACT 60C, SMK 60CRP;
Optional: HE 60MA, PRACT 60MA,
SMK 60RP, TB 60, ILL 60, etc.
High firing capacity and accuracy with quick and easy operation;
Portable by one soldier and with extremely light weight – which make it suitable for paratroops special unit missions, especially on difficult terrain;
Capability of direct and ballistic-trajectory fire;

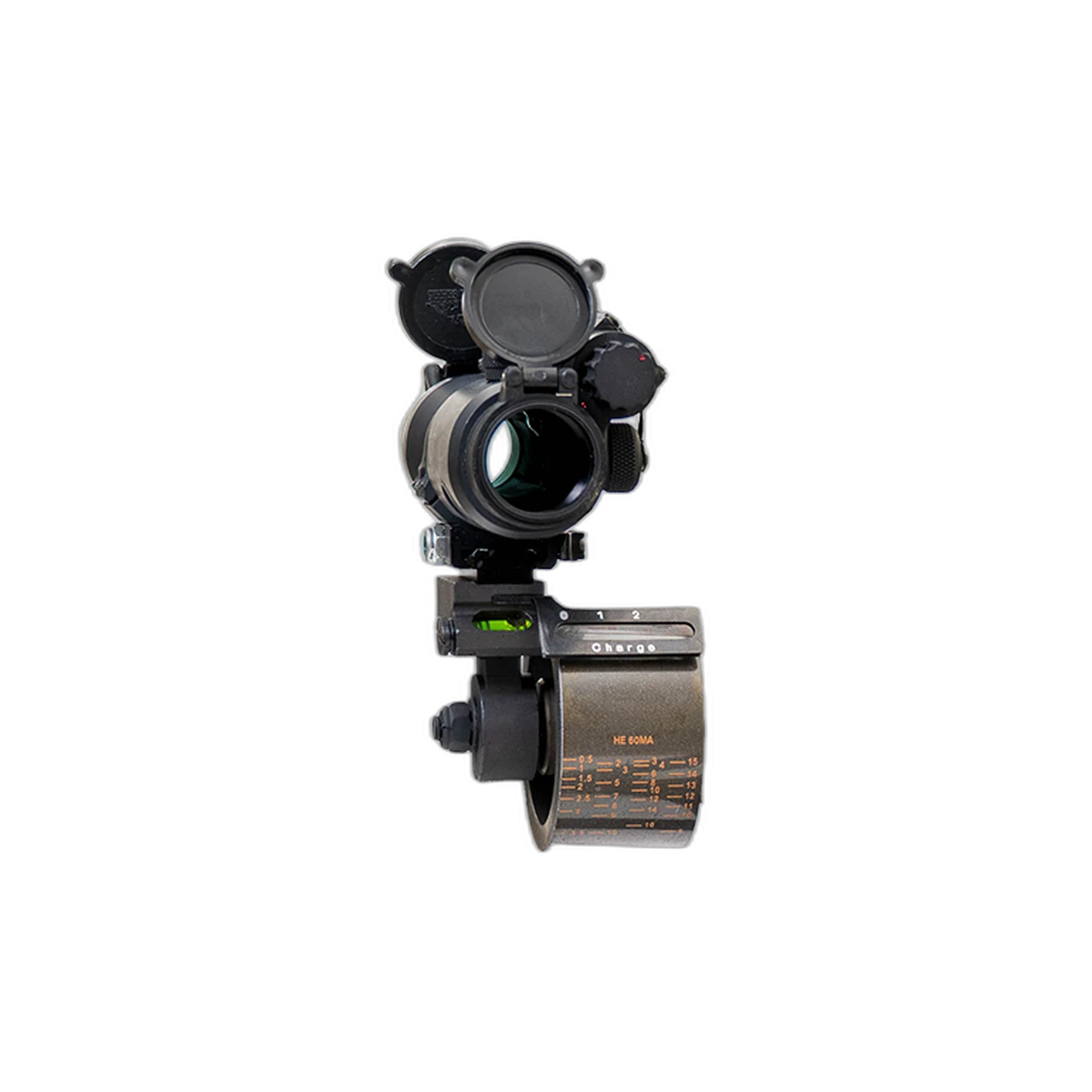

The Mortar is equipped with collimator sight МК-6;
Laying of the weapon at required angle of elevation is performed using collimator sight, as well as the special marking on the carrying strap;
Can fire all types of all standard 60 mm Mortar Bombs (with max average operating gas pressure up to 250 bar), and Mortar bombs specially designed by ARSENAL JSCo for Commando type Mortars: HE 60C, HEI 60C, TB 60C, AD 60C, ILL 60C, PRACT 60C, SMK 60CRP.
It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2nd increment charge from
60 mm Commando Mortar M60CMA!
SPTA set:
Spare parts – firing pin assy., firing spring;
Tools – screw key SW 17 mm, bent wrench for hexagon socket head screws SW 5 mm, bent wrench for hexagon
socket head screws SW 6 mm;
Accessories:
Oil can, two-part wiper arm, barrel brush, aiming device, carrying strap (aiming strap) with caps, barrel protective
case, bag for SPTA set;
The Mortar is equipped with collimator sight МК-6.
6 pcs. Mortars are packed in a wooden case
Wooden case dimensions, mm
1240x640x440
Wooden case gross weight, kg
88
Wooden case volume, m3
0.35
*Extra (paid separately): haver sac for 6 Mortar Bombs
*Packing of haver sack 18 pcs. in wooden case
Wooden case gross weight, kg
60
Wooden case dimension, mm 1240х640х440
Wooden case volume, m3 0.35
